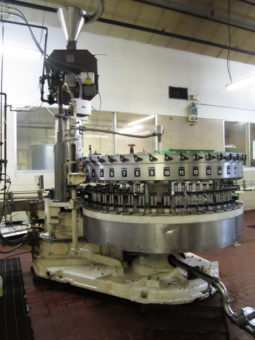

Used Crown 45 Valve Bottle Filler with 6 Head Alcoa Capper
| Condition | Used |
| Category | Beverage Fillers, Bottle Fillers, Cappers - Capping Equipment, Fillers - Filling Equipment, Plastic Screw Cappers, Rotary Fillers |
| Manufacturer | Alcoa, Bevcorp, Crown |
| Model | 45/6 |
| Industry | Beverage |
| Speed | 400 BPM |
| Location | North America |
The Used Crown 45 Valve Bottle Filler with 6 Head Alcoa Capper is a versatile soft drink bottle filler that demonstrates proven reliability at speeds up to 400 bpm (12oz). Safe, dependable bottle handling, combined with ease of operation and maintenance, provides smooth, efficient output. Crowns “battleship construction, with heavy cast iron base, housing, cylinder support and support pedestal, helps to promote outstanding performance under “all-go” conditions for years to come.
Unit is Available now and can be customized to your specifications (Crown or Plastic Screw Cap)
This Used Crown 45 Valve Bottle Filler with 6 Head Alcoa Capper is capable of running bottles up to 64oz on every filling valve. The Model 45/6 is currently set with a 6 head Alcoa plastic screw capper but can be customized to run 6 crowning heads or a 6 head capper with crowner conversion. Feature by feature, these Crown soft drink beverage bottle fillers add up to maximum production with cost-saving efficiencies that return the highest profit to bottlers.
- Smooth, reliable bottling handling
- Fast filling rate
- Watchful “no bottle” detector
- Quick Changeovers
- Custom Options Available
- Filling system cleans easily
- Versatile Filling
- Flexible Layout
Production Specifications
| Speed Rating | Up to 400 bpm (12oz) |
| Types of Bottles | N.R. & returnable glass, or plastic |
| Bottle Sizes | Up to 64 oz. |
| Diameters | 2" to 5.25" |
| Heights | 5" to 13.5" |
| Filler Valves | 45 |
| Capper Heads | 6 |
| Capper Heads (Option) | 6 |
| Crowner / Capper Heads Conv. (Option) | 6 |
Machine Specifications
| Converted to 1881 closure | 2007 |
| Width (Straight Discharge) | 151.25" |
| Width (90° Discharge) | 103.25" (Max.) |
| Length (Overall) | 100.375" |
| Height (to top of hopper) | 103.5 (Max.) |
| Net Weight | 18,000 lbs (8165 Kg.) |
| Shipping Weight (Domestic) | 18,500 lbs |
| Shipping Weight (Export) | 20,300 lbs (9208 Kg.) |
| Air Requirement | 15-20 CFM at 75-100 PSI |
| Crate Sizes | 135" L x 107" W x 109" H |
Features
- Pressure regulators, shutoff valves and gauges mounted in centralized panel located beneath electrical control cabinet
- Heavy, sturdy cast iron throughout- base, housing cylinder support and support pedestal.
- Crowning heads contained in lubricant-packed turret, cam- operated for smooth vertical operation in application and crimping of crown
- Equipped with automatic oil lubrication system to supply oil to all bearings and bushings requiring contact lubrication
- All metal parts in contact with a product made of high-quality grade stainless steel
- Equipped with high-speed Uni-Blend filling Valve
Highlights
- Smooth, reliable bottling handling
- Fast filling rate
- Watchful “no bottle” detector
- Quick Changeovers
- Smooth filling operation
- Filling system cleans easily
- Versatile Filling
- Flexible Layout
Crown Filling Valve
