|Category||Heat Shrink Tunnels, Shrink Wrap Equipment, Shrink Wrappers, Wrappers - Wrapping Equipment|
|Industry||Automotive, Beverage, Brewery, Chemical, Consumer Products, Food, Nutraceutical|
The Used Lantech SW 5000 Continuous Motion Shrink Wrapper was designed to make setup and operation as simple as possible to increase productivity. The unit has a speed rating up to 75 packages per minute. Fitting to your application the unit operates from either side of the machine, has 6″ Flighted infeed with quick change pins, comes with electronic package spacing, and vertical and horizontal product detection. Its operator friendly with a programmable logic controller, Color touch-screen control panel with password protection. and multi-chamber, high velocity vacuum belt provides positive film drive and accommodates wide range of product sizes.
The unit has a speed rating up to 75 packages per minute. Available Now
Bottom Lap Seal | Right to left direction | Self Threading Film Load Forming Head | Self Correcting Film Tracking | Product sizes Min 3″ x 4″ x 1/8″ to Max 40″ x 15″ x 8″ (L x W x H) | 6” Flighted Infeed Product Indexing | Assembly (Adjustable size) | 18” MAX Seal Width | Hot Knife Seal Bar | 38” MAX Film width | Polyolefin, Polypropylene and PVC film materials | 15” Wide conveyor | Speed Controls | Safety Interlock Features | Product Detection | Casters Floor Levelers | E-stop | Operator Interface Controls | Panel View Touch Screen | PLC Controller
|PRODUCTION SPEED||up to 75 Packages / Min|
|PRODUCT SIZES||(3"x4"x1/8" Min) (40"X15"X8" Max)|
|CROSS SEAL WIDTH||18"|
|FILM WIDTH (SINGLE WOUND)||Up to 38" wide|
|FILM TYPES||Most Commercial grade Polyolefin, PVC Some films may require change parts.|

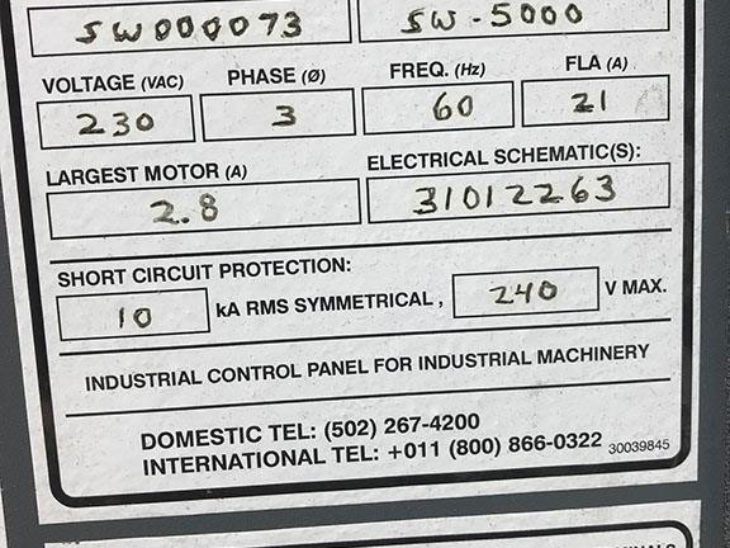

|ELECTRICAL REQUIREMENTS||230 V, 3 phase, 25 Amp|
|PNEUMATIC REQUIREMENTS||8-12 CFM @ 85 PSI|
|Dimensions||156 L x 49 W x 40 H|
|WEIGHT (approx. machine/shipping)||2000 / 2900 lbs.|
