Used Langguth E62 Hot Glue Wrap Around Labeler

Condition Used
Category Hot Melt Labelers, Labelers - Labeling Equipment, Rotary Labelers
Manufacturer Langguth
Model E62
Industry Automotive, Beverage, Brewery, Consumer Products, Dairy, Distillery, Food, Nutraceutical, Winery
Location North America

Used Langguth E62 Hot Glue Wrap Around Labeler

The Used Langguth E62 Hot Glue Wrap Around Labeler delivers high output and positive changeover for a variety of containers. Soft PET bottles, steel cans, tapered jars, and square F-style containers commonly rely on the Hot Melt Rotary Labeler. Speeds of this labeler operates up to 750bpm. This Langguth Hot Glue Wrap Around Labeler was last labeling Cut and Stack type labels on beverage bottles with Nordson hot melt glue Operating left to right (counter-clockwise) running 500+ bpm on 500 ml PET water bottles.

Speeds of this labeler operates up to 750bpm. Available Now

The Used Langguth E62 Hot Glue Wrap Around Labeler is specially designed to attach paper and plastic wrap-around labels to round, rectangular as well as oval containers the walls of which, however, must be parallel. The machine conveyor transports the containers via the in-feed scroll and the in-feed star to the container plates of the carousel. After the transfer the label is closed by the label fixing elements at the overlap. Due to simple and intelligent design, the Langguth E62 requires a minimum of operator attention. Change-over to different sizes can be done by the operator as all size parts are marked and all adjusting points are equipped with scales or digital counters. Size parts for each container is supplied with a set-up sheet that refers to clearly marked set- points on the machine. No tools and no handling of HOT equipment are required for a size change.

Speed Rating
Model E62 16/8/45 up to 750 cpm
Weight
Model E62 16/8/45 2,100 kg
Electrical
Electrical Connect 460 Volt, 3 Ph, 60 Hz
Technical Data
Construction Rotary Machine, left-hand or right-hand
Labels Wrap-around labels
Containers Rectangular, Round, oval containers
Compressed Air 6 - 10 bar (80 to 140 psi)
Container Diameter (57 - 110 mm) (57 - 80 model 28/16/60)
Label Height 25 - 235 mm
Label Length (190 - 430 mm) (190 - 260 mm)
Serial E0620177

Available Options

  • Container orientation in infeed star
  • Dual feed worm for tall, unstable containers
  • Lap glue system for plastic (OPP) labels
  • Bar code verification with automatic reject
  • Label check with camera system and automatic reject
  • Addition of P/S label to container
  • ER model for square / rectangular containers
  • Choice of control system
  • Other options are also available on request

Operation & Change Over

The Langguth E62 requires a minimum of operator attention. Thanks to its ergonomic design and operator friendly controls, the E62 requires only that labels and glue is added at regular intervals — under full production speed. Both low glue and low label levels can be observed via optional alarms, which make the operation of the machine truly part-time. Changing the E62 to different bottle and label sizes can be done in minutes by the operator, as a complete set-up list is supplied for each container and all parts and set-points are clearly marked, the latter with scales or digital indicators. The rotation speed of the containers is controlled by an infinite gearbox and at no time is it necessary to change pulleys or timing belts during the change over. The label magazine is fully adjustable in the range of labels that can be used with the E62. Only the upper and lower front finger rails need to be changed when the label length changes more than approximately 12 mm. The chart below indicates the standard versions of the Langguth E62 labellers. If your container falls outside of these standards, please contact us as special arrangements can almost always be made, including for square/rectangular as well as tapered containers.

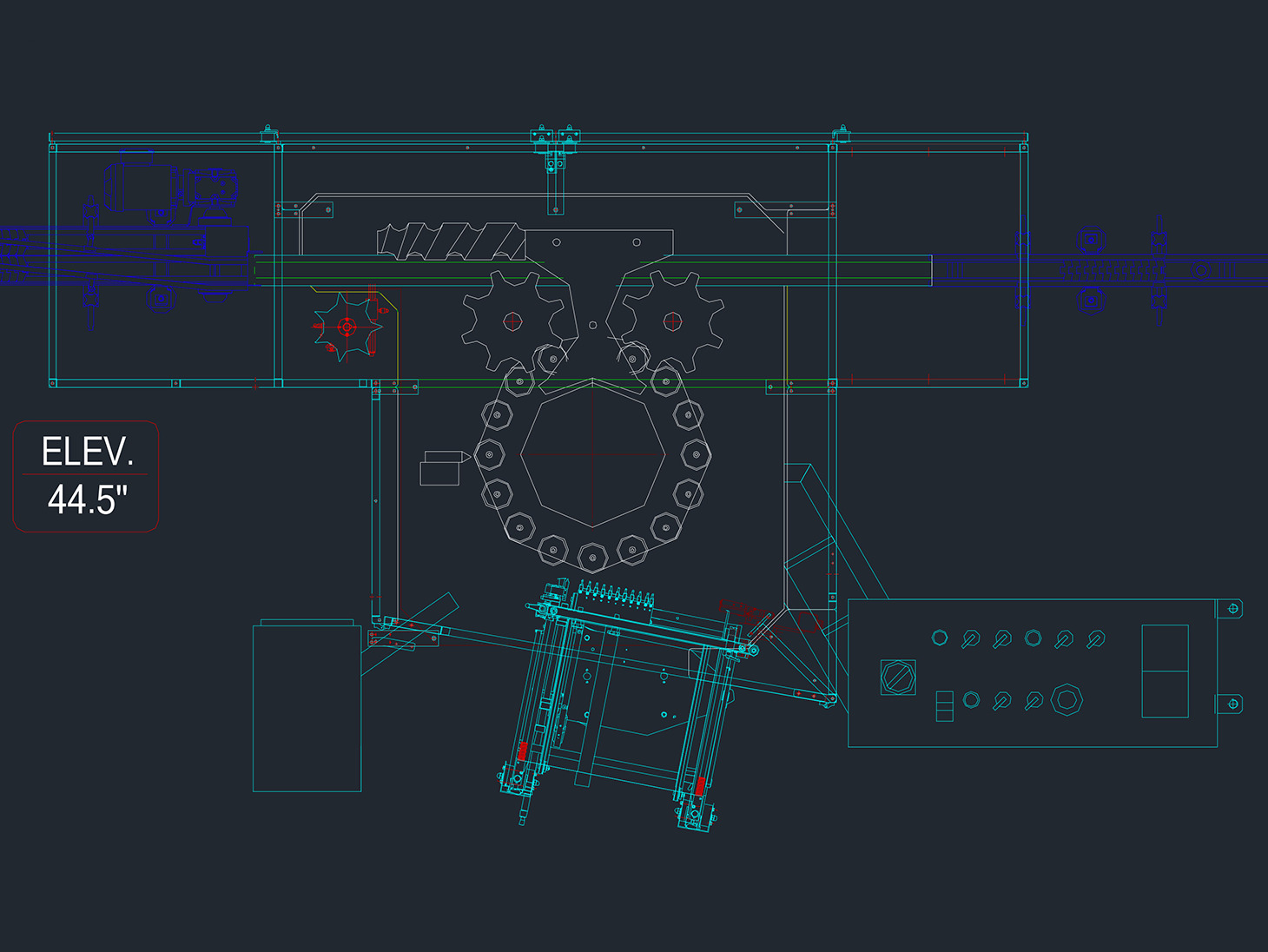

(1) infeed  (2)  container stop  (3) infeed worm  (4) infeed star  (5) carousel  (6) hotmelt tank  (7)  label magazine  (8) discharge star  (9) machine guarding  (10) electrical panel, operator station  (11) conveyor drive  (12) pick-up gluing  (13) overlap gluing  (14) brushes
