Used Trine 4400 Roll Fed Hot Glue Labeler

SOLD
Condition Used
Category Hot Melt Labelers, Inline Labelers, Labelers - Labeling Equipment, Roll Fed Labelers
Manufacturer ACCRAPLY, Trine
Model 4400
Year 2009
Industry Beverage, Consumer Products, Food, Nutraceutical
Location North America
Stock Number 0616-180216

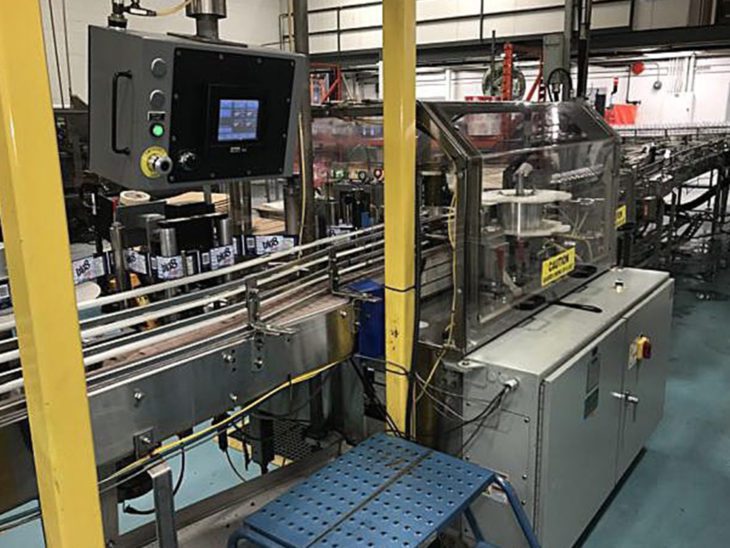

Used Trine 4400 Roll Fed Hot Glue Labeler

This Used Trine 4400 Roll Fed Hot Glue Labeler was designed with a 30% smaller footprint and provides labeling speeds up to 200 cpm. Equipped with quick change parts, a product changeover can take one person less than 15 minutes with just a single tool. The 4400 is designed with the latest in glue application technology and label registration control. With advanced technology, quicker changeovers, and affordable change parts, the 4400 provides a roll fed labeling system ideal for any demanding environment.

Includes (7) Existing Change Parts for 500ml, 591ml, 1 liter, 2 liter PET Bottles. Available Now

The Used Trine 4400 Roll Feed Hot Glue Labeler was last labeling various round containers at speeds to 200 BPM. Comes with a timing screw infeed and Nordson Altablue HM Glue System. The Trine model 4400 labeler is designed to run containers with diameters 1.75 inches to 5 inches.With applications in beverage, food, pharmaceutical, cosmetic, dairy, aerosol and nutritional product industries. Trine roll fed labeling systems have proven their versatility and provided ongoing savings by replacing higher-cost cut labels.

  • Quick Change <15 minutes
  • (4) Threaded Floor Leveler Legs
  • Nordson Altablue HM Glue System
  • Modular Change Parts
  • Swivel Operators Panel
  • Timing Screw Container Infeed Mechanism
Dimensions
Overall Dimensions: 127” L x 48” W
Weight: Approximately 3,200 lbs. (1451 kg)
Serial Number: 6439
Speed Rating
Factory Rated 200 cpm
Electrical
Electrical Requirements: 240 volts AC, 3 phase, 60 hertz
Standard Label Dimensions
Repeat Length: 6.5" to 16.5" (1.53.4 mm to 419.1 mm)
Web Width: 1” to 8.25” (25.4 mm to 209.6 mm)
Diameter: 1.75” to 5” (44.5 mm to 127 mm)
Air Requirements
Air Requirements: 80 psi (5.52 bar), 12-15 cfm (340-425 L/min

Key Features :

  • Efficient glue wheel transfer to minimize glue consumption
  • PLC controlled for reliability and ease of operation
  • Smaller footprint utilizes less floor space
  • Quick change components reduces changeover time
  • Fewer moving parts reduces maintenance cost

Highlights :

  • Quick Change <15 minutes
  • (4) Threaded Floor Leveler Legs
  • Nordson Altablue HM Glue System
  • Modular Change Parts
  • Swivel Operators Panel
  • Timing Screw Container Infeed Mechanism
